There are several steps required to complete the inside of the YMCA Solar Greenhouse:

Building the walkway

The walkway is built with #57 stone up to near the door level with Trex boards on top. About 7.5 tons of rocks are needed. One 4" slotted drain pipe connected to the two end 24" pipes is inserted in the middle of the stone as part of the heat sink..

A piece of the 5/16" Hardie board is used between the rocks under the walkway and the soil on both sides of the walkway. Cut three 4'x8' sheets into three pieces 16"x8'. Scrap 2"x4"s hold it in place with screws while the rocks and soil are put in place. The Hardie board extends up to the level of the Trex walkway.

"Due its concrete fibers, Hardie plank is impervious to any external elements, such as rain, hail, wind, flying debris, and humidity. Not only will cement board siding not chip because of its strength, it doesn't retain moisture either; therefore it never rots or swells."

Because the door was not put exactly in the center of the east-end wall, the walkway has to be bent near the east end:

It is about 7’10” between the edges of the walkway and the and north and south walls. My idea is to have two 6’x1”x12” boards that can be moved to anywhere north-to-south for walking on to reach the north and south ends of the two planting beds.

The Trex boards for the top of the walkway were donated by Green Valley Builders.

Back to the top

Installing Planting Beds

Soil mixture

• 10% Builders Sand (2.7 cu yards) (Does not need to be sterilized).
• 70% Sungro (18.9 cu Yards)
• 20% Top Soil (5.4 cu yards)

:
Sun Gro donated 75 bales of Organic #1 Mix
John Ogburn donated 5 more bales.

Installing the soil

Debbie Wiley starting putting soil inside:

Hardie-board boundary between the rocks under the walkway and the soil:

Debbie Wiley after putting soil inside:

Walkway rocks in place: Berek Crawford did much of it.

Walkway almost done:

Concrete pad is ready for the water tank:

Heat-sink fan wired and shelves built around the heat-sink inlet pipe:

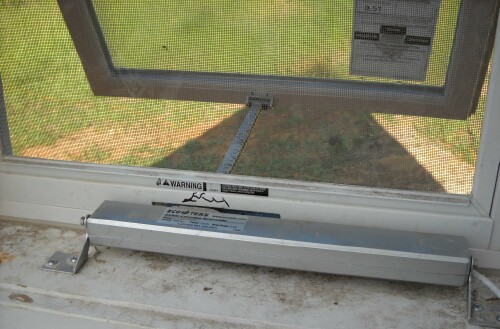

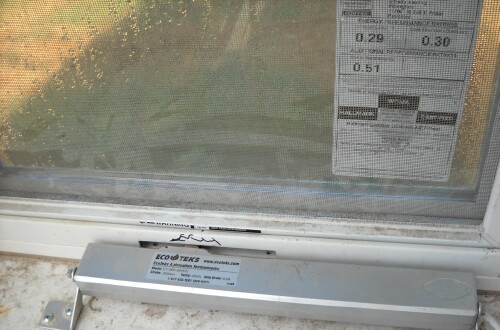

Electric openers for the Marvin vent windows installed: The plastic piece under the screen (take out by pushing up on it) snaps up, revealing screws that held the crank opener in place. A small screen was placed over the hole between the opener and the window frame to keep bugs out.

Installation of the exhaust fan by Chris Roberts: For a redesign, put in a larger vent window and exhaust fan.

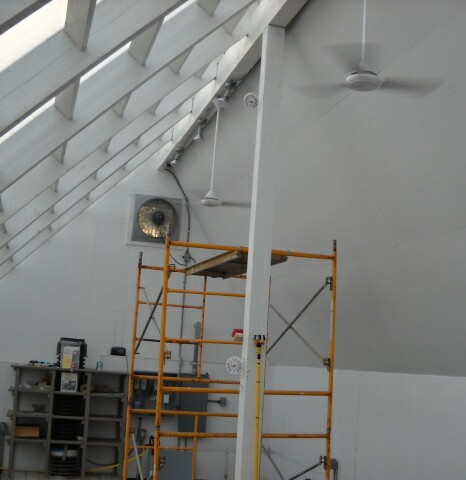

Ceiling fans

Water tank installed:

Fans & windows control box installed:

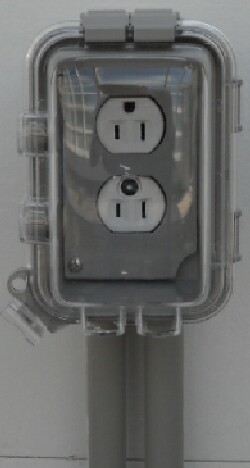

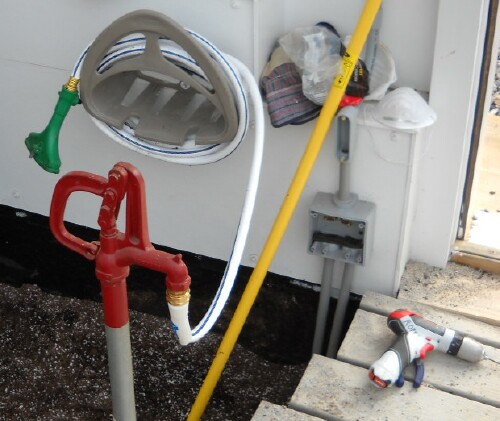

Outlets installed:

Lights installed: 3 on left are LEDs, 3 on right are CFLs.

Installing the heat-sink fan

Plans for the heat-sink inlet pipe and fan location on the west end:

• The 12” vertical air-inlet pipe is in the middle of the horizontal 24” pipe at the west wall.
• The 5’ turn-around at the west end of the walkway will end just before the vertical pipe that holds the fan, which makes it end about 2’ from the west edge of the SGH.
• The fan is placed 2’ above the top soil. There is a 12” adaptor into the 24” pipe with a 2’ section of 12” pipe coming out of it on which the fan is placed. Then another piece of 12” pipe extends the inlet pipe to 6’ above the top soil.
• A series of 5’-long shelves up to 5’ above the top soil surrounds the inlet pipe for holding the vertical pipe in place and for storing planting items.
