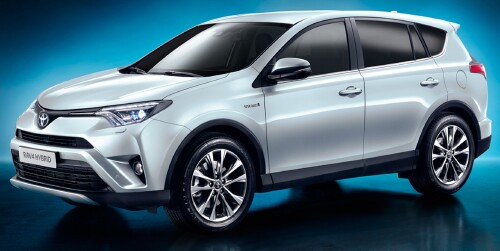

Toyota RAV4 AWD-i Hybrid 2016

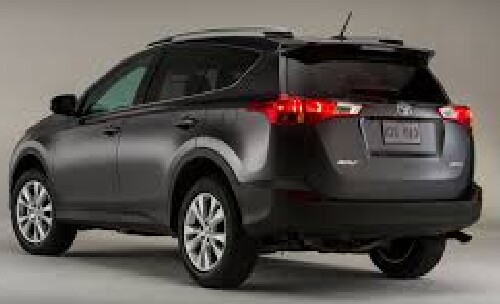

Magnetic Gray Metallic
Similar to the Lexus Nx 300h
http://www.toyota.com/rav4/ebrochure/

Data

Check the official documentation for items listed here to be sure and in case of changes.

Engine:
Inline 4, 154 hp (105 kW) @ 5,700 rpm, 2.5 L, 16 valves; 12.5/1 compression ratio
Aluminum block and heads, Atkinson cycle
152 ft-lbs @ 4,400 rpm
Gas Tank:
14.8 gallons; 87 octane
3 Motors:
Front MG2:141 hp (105 kW) @ 4,500 rpm; MG1: hp ( kW) @ 12,500 rpm
Rear: 67 hp (50 kW) 244.8 Volts normal, permanent magnet AC synchronous
All 650 volts. MG1 & MG2 and the gasoline engine are connected by a planetary gear set (ECVT) to the front wheels through reduction gears (ratio 3.542 for AWD-i).
See http://www.clublexus.com/2015%20NX%20300h%20Product%20Info.pdf.
1.6-kWh nickel-metal hydride 244.8 volts (204 cells in 2 packs, 1.41 V/cell); 88 lbs
Total Power:
194-hp (145-kW) @ 5,700-rpm
Total Torque:
206 ft-lbs
Drive Modes:
EV (0.6 miles for full hybrid battery), ECO, Standard
Range:
488.4 miles/444.0-miles city/hwy
Free Maintenance:
1 year, 10,000-miles
Top speed :
112-mph
Acceleration::
0-60 mph: 7.8-seconds
Braking:
60-0: 119-ft
AWD:
AWD-i only
Fuel economy:
33/30 mpg city/hwy
Warranty:
Basic: 50,000 miles/4 years; Drivetrain: 70,000 miles/6 years; Hybrid: 100,000 miles/8 years
Roadside: unlimited miles/5 years; Rust: unlimited miles/6 years
Seating:
5
Display:
7" touch screen
Weight:
3935-lbs (56/44%)

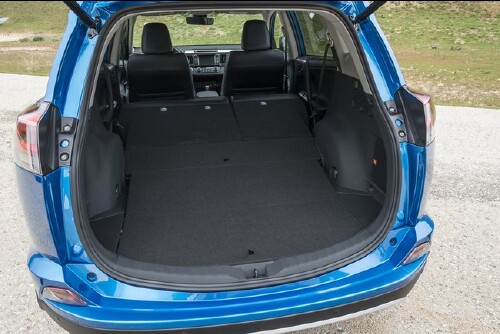

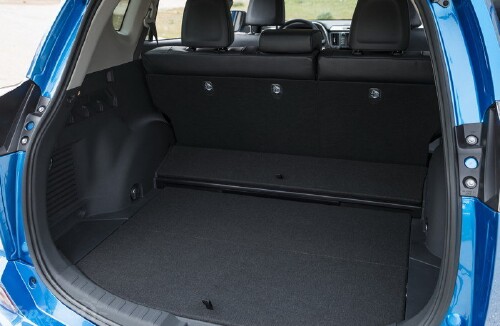

Cargo:
35.6-ft^3/70.6-ft^3
Features:
Smart key, push-button start, dual-zone climate control, cruise control

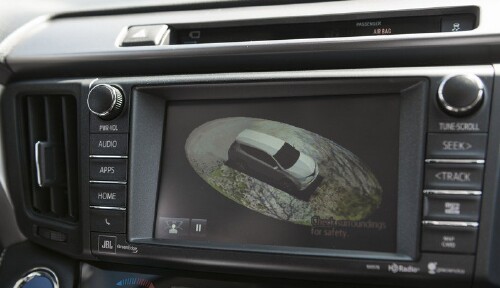

4 cameras for Bird's Eye View, 8-speakers, USB, iPod, HD Radio

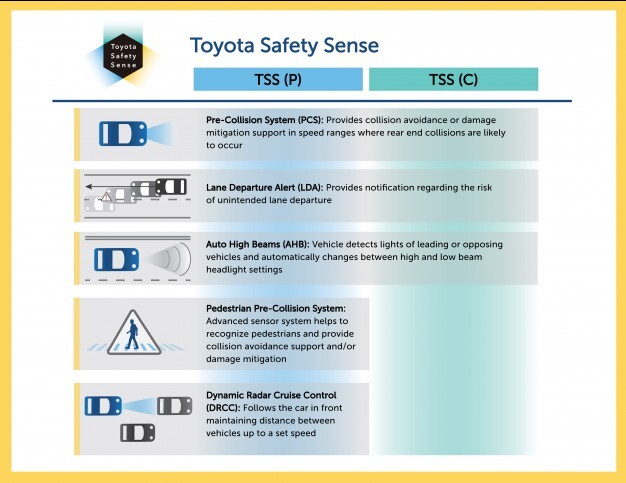

Pre-Collision System with pedestrian detection function, Lane Departure Alert,
Adaptive Cruise Control, Automatic High Beam
Dimensions:
Length: 15'1.1", Width: 6'0.6", Height: 5'5.9"
Ground clearance:
6.3"
Turning diameter:
34.8'
0.31
Towing:
1700 lbs
Tires:
225/65R17 all season/225/60R19 optional
Compact spare: T165/80D17
CO2 emissions:
0.60-lb/mile
MSRP:
~$29,000+

http://www.toyota-global.com/innovation/safety_technology/toyota-safety-sense/
http://www.autoblog.com/2013/10/13/toyota-pre-collision-system-steering-assist/
http://www.edmunds.com/car-news/toyota-safety-sense-lexus-safety-system-pricing-announced.html

Advanced Technology Package ($1,435)

Owner's Manual
Navigation Manual

Exterior Colors

EPA Ratings

City: 34 mpg; Highway: 31 mpg; Combined: 33 mpg

Reviews

Movies

References

Prius HSD
Highlander HSD
Nissan Rouge HD

S=sun gear, R=ring gear, C=planetary gears


S=sun gear, R=ring gear, C=planetary gears

It has two planetary gear sets.

The AWD has another electric motor/generator in the rear not physically connected to the front hybrid system.

Probably the RAV4 Hybrid HSD is the same as the Highlander Hybrid.

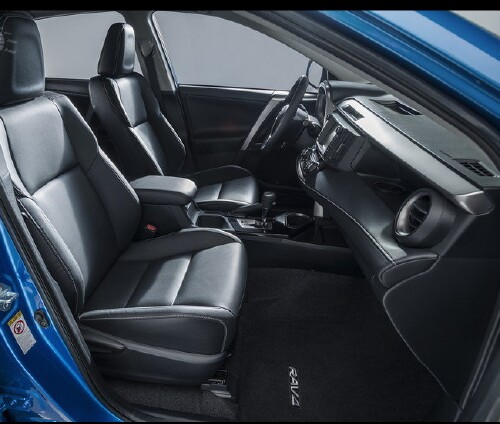

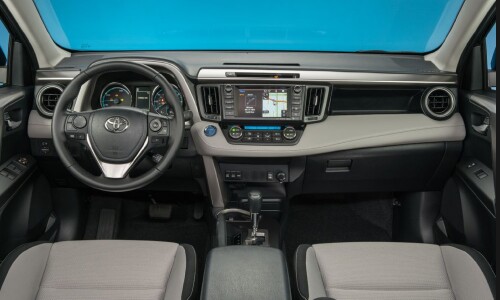

Ash interior


Classic Silver Metallic

45 pictures of 2016 Toyota RAV4 Hybrid
